Figure S2b

Import libraries

import anndata
import cellplots as cp
import larry
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import scdiffeq as sdq
import scdiffeq_analyses as sdq_an
import scipy.stats
import seaborn as sns
import sklearn
import torch
import umap

Read data

This version of the LARRY dataset has not been split for test and train

def download_in_vitro_adata():
    in_vitro = larry.datasets.inVitroData()
    adata = in_vitro.compose_adata()
    return adata

adata = download_in_vitro_adata()

/home/mvinyard/.anaconda3/envs/sdq/lib/python3.9/site-packages/anndata/_core/anndata.py:522: FutureWarning: The dtype argument is deprecated and will be removed in late 2024.
  warnings.warn(

- [ INFO ] | Added lineage x fate counts to: adata.uns['fate_counts']
- [ INFO ] | Added lineage-time occupance to: adata.uns['time_occupance']
- [ INFO ] | Fated cells annotated at: adata.obs['fate_observed']
- [ INFO ] | Fated cells (t=t0) annotated at: adata.obs['t0_fated']
- [ INFO ] | Added cell x fate counts to: adata.obsm['cell_fate_df']

in_vitro = larry.datasets.inVitroData()

larry.datasets.klein_lab_pp_recipe.highly_variable_genes(adata)

larry.datasets.klein_lab_pp_recipe.remove_cell_cycle_correlated_genes(adata)

adata

AnnData object with n_obs × n_vars = 130887 × 25289
    obs: 'Library', 'Cell barcode', 'Time point', 'Starting population', 'Cell type annotation', 'Well', 'SPRING-x', 'SPRING-y', 'clone_idx', 'fate_observed', 't0_fated'
    var: 'gene_ids', 'hv_genes', 'use_genes'
    uns: 'fate_counts', 'time_occupance'
    obsm: 'X_clone', 'cell_fate_df'

adata = adata[:, adata.var['use_genes']].copy()

adata.obs['train'] = adata.obs['Well'].isin([0, 1])
adata.obs['test'] = adata.obs['Well'].isin([0, 2])

X_train = adata[adata.obs['train']].X
X_test = adata[adata.obs['test']].X

ScalerModel = sklearn.preprocessing.StandardScaler()
PCAModel = sklearn.decomposition.PCA(n_components=50)
UMAPModel = umap.UMAP(n_components=2)

X_train_scaled = ScalerModel.fit_transform(X_train.A)
X_test_scaled = ScalerModel.transform(X_test.A)

X_train_pca = PCAModel.fit_transform(X_train_scaled)
X_test_pca = PCAModel.transform(X_test_scaled)

X_train_umap = UMAPModel.fit_transform(X_train_pca)
X_test_umap = UMAPModel.transform(X_test_pca)

adata_train = adata[adata.obs['train']].copy()
adata_test = adata[adata.obs['test']].copy()

adata_train.obsm['X_pca'] = X_train_pca
adata_train.obsm['X_umap'] = X_train_umap

adata_test.obsm['X_pca'] = X_test_pca
adata_test.obsm['X_umap'] = X_test_umap

adata_train.write_h5ad("adata_train.larry.h5ad")
adata_test.write_h5ad("adata_test.larry.h5ad")

def _subset(adata_train, adata_test, t: int):

    train_subset_idx = adata_train.obs.loc[adata_train.obs['Time point'] == t].index
    test_subset_idx = adata_test.obs.loc[adata_test.obs['Time point'] == t].index
    subset_train_X_pca = adata_train[train_subset_idx].obsm['X_pca']
    subset_test_X_pca = adata_test[test_subset_idx].obsm['X_pca']
    return subset_train_X_pca, subset_test_X_pca

Subsets = {}
for t in [2, 4, 6]:
    Subsets[t] = _subset(adata_train, adata_test, t = t)

sinkhorn = sdq.core.lightning_models.base.SinkhornDivergence()

def compute_distance(X_pca_train, X_pca_test, N: int = 10, batch_size: int = 2048):
    dist = {}
    X_train = torch.Tensor(X_pca_train)
    X_test = torch.Tensor(X_pca_test)
    for i in range(N):
        x_train_idx = np.random.choice(range(len(X_train)), batch_size)
        x_test_idx = np.random.choice(range(len(X_test)), batch_size)
        X_train_ = X_train[x_train_idx].to("cuda:0")
        X_test_ = X_test[x_test_idx].to("cuda:0")
        dist[i] = sinkhorn(X_train_, X_test_).detach().cpu().numpy()
    return pd.Series(dist)

Distances = {}
for ti, (X_train_i, X_test_i) in Subsets.items():
    Distances[ti] = {}
    for tj, (X_train_j, X_test_j) in Subsets.items():
        Distances[ti][tj] = compute_distance(X_train_i, X_test_j, N = 25, batch_size = 2048)
        print(ti, tj)
    _df = pd.DataFrame(Distances[ti])
    Distances[ti] = pd.DataFrame(({"mean": _df.mean(), "std": _df.std()}))

2 2
2 4
2 6
4 2
4 4
4 6
6 2
6 4
6 6

Distances from d2

Distances[2]

	mean	std
2	57.127905	15.361094
4	119.009668	12.250074
6	222.619687	16.248635

Distances from d4

Distances[4]

	mean	std
2	119.328818	16.013192
4	51.865576	12.13288
6	98.818047	12.880247

Distances from d6

Distances[6]

	mean	std
2	203.168984	18.107891
4	88.325303	10.735557
6	46.708657	5.904622

time_cmap = sdq_an.pl.generate_temporal_cmap()

t_coarse = time_cmap.colors[2:-2][::18]
t_coarse

array([[0.979644, 0.854866, 0.142453],
       [0.801855, 0.284626, 0.465971],
       [0.227983, 0.016007, 0.604867]])

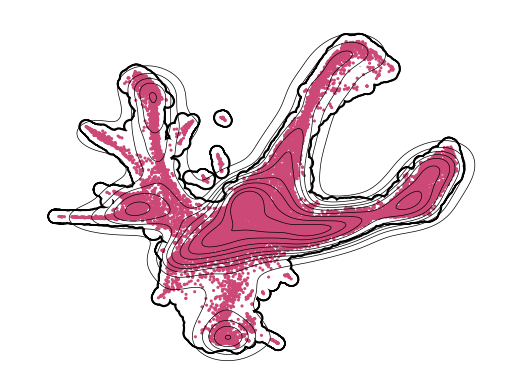

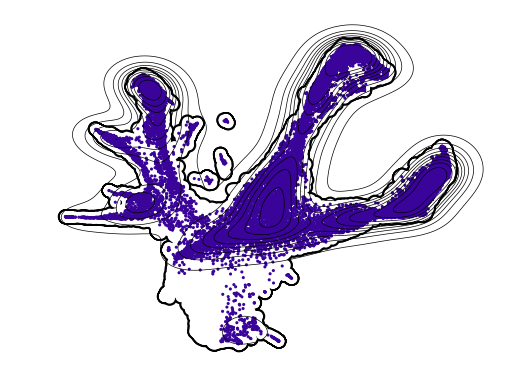

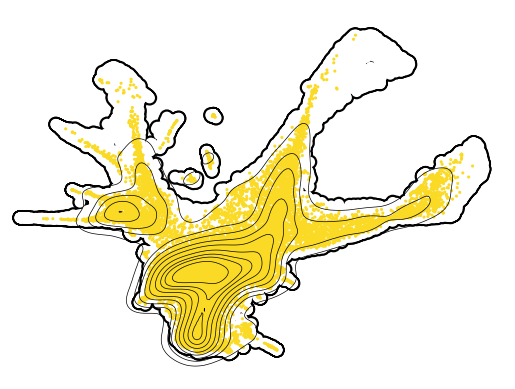

Plot train data

for en, t in enumerate([2, 4, 6]):
    axes = cp.umap_manifold(adata_train)
    cp.umap(adata_train[adata_train.obs['Time point'] == t], ax = axes[0], s = 5, c = t_coarse[en])
    xu = adata_train[adata_train.obs['Time point'] == t].obsm['X_umap']
    sns.kdeplot(x = xu[:,0], y = xu[:,1], c = "k", ax=axes[0], zorder = 301, linewidths=0.5)
    plt.savefig(f"train.timepoint_{t}.svg", dpi = 250)
    plt.savefig(f"train.timepoint_{t}.png")
    plt.show()

/home/mvinyard/.anaconda3/envs/sdq/lib/python3.9/site-packages/cellplots/core/_umap.py:194: UserWarning: *c* argument looks like a single numeric RGB or RGBA sequence, which should be avoided as value-mapping will have precedence in case its length matches with *x* & *y*.  Please use the *color* keyword-argument or provide a 2D array with a single row if you intend to specify the same RGB or RGBA value for all points.
  ax.scatter(X_umap[:, 0], X_umap[:, 1], **KWARGS)
/home/mvinyard/.anaconda3/envs/sdq/lib/python3.9/site-packages/seaborn/distributions.py:1176: UserWarning: The following kwargs were not used by contour: 'c'
  cset = contour_func(

/home/mvinyard/.anaconda3/envs/sdq/lib/python3.9/site-packages/cellplots/core/_umap.py:194: UserWarning: *c* argument looks like a single numeric RGB or RGBA sequence, which should be avoided as value-mapping will have precedence in case its length matches with *x* & *y*.  Please use the *color* keyword-argument or provide a 2D array with a single row if you intend to specify the same RGB or RGBA value for all points.
  ax.scatter(X_umap[:, 0], X_umap[:, 1], **KWARGS)
/home/mvinyard/.anaconda3/envs/sdq/lib/python3.9/site-packages/seaborn/distributions.py:1176: UserWarning: The following kwargs were not used by contour: 'c'
  cset = contour_func(

/home/mvinyard/.anaconda3/envs/sdq/lib/python3.9/site-packages/cellplots/core/_umap.py:194: UserWarning: *c* argument looks like a single numeric RGB or RGBA sequence, which should be avoided as value-mapping will have precedence in case its length matches with *x* & *y*.  Please use the *color* keyword-argument or provide a 2D array with a single row if you intend to specify the same RGB or RGBA value for all points.
  ax.scatter(X_umap[:, 0], X_umap[:, 1], **KWARGS)
/home/mvinyard/.anaconda3/envs/sdq/lib/python3.9/site-packages/seaborn/distributions.py:1176: UserWarning: The following kwargs were not used by contour: 'c'
  cset = contour_func(

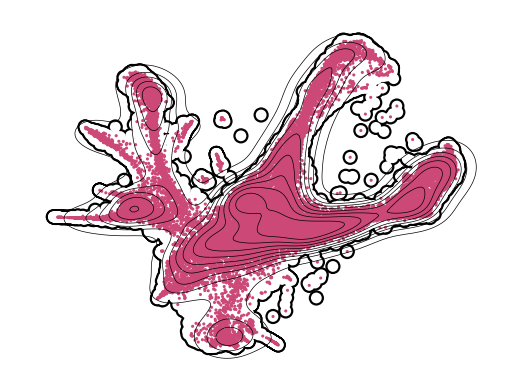

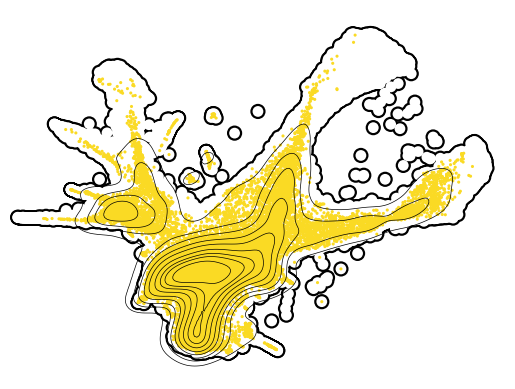

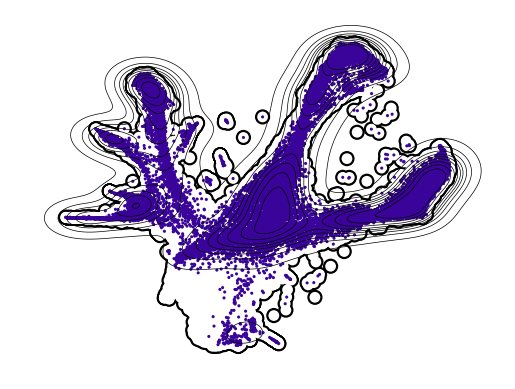

Plot test data

for en, t in enumerate([2, 4, 6]):
    axes = cp.umap_manifold(adata_test)
    cp.umap(adata_test[adata_test.obs['Time point'] == t], ax = axes[0], s = 5, c = t_coarse[en])
    xu = adata_test[adata_test.obs['Time point'] == t].obsm['X_umap']
    sns.kdeplot(x = xu[:,0], y = xu[:,1], c = "k", ax=axes[0], zorder = 301, linewidths=0.5)
    plt.savefig(f"test.timepoint_{t}.svg", dpi = 250)
    plt.savefig(f"test.timepoint_{t}.png")
    plt.show()

/home/mvinyard/.anaconda3/envs/sdq/lib/python3.9/site-packages/cellplots/core/_umap.py:194: UserWarning: *c* argument looks like a single numeric RGB or RGBA sequence, which should be avoided as value-mapping will have precedence in case its length matches with *x* & *y*.  Please use the *color* keyword-argument or provide a 2D array with a single row if you intend to specify the same RGB or RGBA value for all points.
  ax.scatter(X_umap[:, 0], X_umap[:, 1], **KWARGS)
/home/mvinyard/.anaconda3/envs/sdq/lib/python3.9/site-packages/seaborn/distributions.py:1176: UserWarning: The following kwargs were not used by contour: 'c'
  cset = contour_func(

/home/mvinyard/.anaconda3/envs/sdq/lib/python3.9/site-packages/cellplots/core/_umap.py:194: UserWarning: *c* argument looks like a single numeric RGB or RGBA sequence, which should be avoided as value-mapping will have precedence in case its length matches with *x* & *y*.  Please use the *color* keyword-argument or provide a 2D array with a single row if you intend to specify the same RGB or RGBA value for all points.
  ax.scatter(X_umap[:, 0], X_umap[:, 1], **KWARGS)
/home/mvinyard/.anaconda3/envs/sdq/lib/python3.9/site-packages/seaborn/distributions.py:1176: UserWarning: The following kwargs were not used by contour: 'c'
  cset = contour_func(

/home/mvinyard/.anaconda3/envs/sdq/lib/python3.9/site-packages/cellplots/core/_umap.py:194: UserWarning: *c* argument looks like a single numeric RGB or RGBA sequence, which should be avoided as value-mapping will have precedence in case its length matches with *x* & *y*.  Please use the *color* keyword-argument or provide a 2D array with a single row if you intend to specify the same RGB or RGBA value for all points.
  ax.scatter(X_umap[:, 0], X_umap[:, 1], **KWARGS)
/home/mvinyard/.anaconda3/envs/sdq/lib/python3.9/site-packages/seaborn/distributions.py:1176: UserWarning: The following kwargs were not used by contour: 'c'
  cset = contour_func(
