Figure S2c

Import libraries

import anndata
import cellplots as cp
import larry
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import scdiffeq as sdq
import scdiffeq_analyses as sdq_an
import scipy.stats
import seaborn as sns
import sklearn
import torch
import umap

Read data

This version of the LARRY dataset has not been split for test and train

def download_in_vitro_adata():
    in_vitro = larry.datasets.inVitroData()
    adata = in_vitro.compose_adata()
    return adata

adata = download_in_vitro_adata()

- [ INFO ] | Added lineage x fate counts to: adata.uns['fate_counts']
- [ INFO ] | Added lineage-time occupance to: adata.uns['time_occupance']
- [ INFO ] | Fated cells annotated at: adata.obs['fate_observed']
- [ INFO ] | Fated cells (t=t0) annotated at: adata.obs['t0_fated']
- [ INFO ] | Added cell x fate counts to: adata.obsm['cell_fate_df']

larry.datasets.klein_lab_pp_recipe.highly_variable_genes(adata)

larry.datasets.klein_lab_pp_recipe.remove_cell_cycle_correlated_genes(adata)

adata

AnnData object with n_obs × n_vars = 130887 × 25289
    obs: 'Library', 'Cell barcode', 'Time point', 'Starting population', 'Cell type annotation', 'Well', 'SPRING-x', 'SPRING-y', 'clone_idx', 'fate_observed', 't0_fated'
    var: 'gene_ids', 'hv_genes', 'use_genes'
    uns: 'fate_counts', 'time_occupance'
    obsm: 'X_clone', 'cell_fate_df'

adata = adata[:, adata.var['use_genes']].copy()

adata.obs['train'] = adata.obs['Time point'].isin([2, 6])
adata.obs['test'] = adata.obs['Time point'].isin([4])

X_train = adata[adata.obs['train']].X
X_test = adata[adata.obs['test']].X

ScalerModel = sklearn.preprocessing.StandardScaler()
PCAModel = sklearn.decomposition.PCA(n_components=50)
UMAPModel = umap.UMAP(n_components=2)

X_train_scaled = ScalerModel.fit_transform(X_train.A)
X_test_scaled = ScalerModel.transform(X_test.A)

X_train_pca = PCAModel.fit_transform(X_train_scaled)
X_test_pca = PCAModel.transform(X_test_scaled)

X_train_umap = UMAPModel.fit_transform(X_train_pca)
X_test_umap = UMAPModel.transform(X_test_pca)

adata_train = adata[adata.obs['train']].copy()
adata_test = adata[adata.obs['test']].copy()

adata_train.obsm['X_pca'] = X_train_pca
adata_train.obsm['X_umap'] = X_train_umap

adata_test.obsm['X_pca'] = X_test_pca
adata_test.obsm['X_umap'] = X_test_umap

adata_train.write_h5ad("adata_train.interpolation.larry.h5ad")
adata_test.write_h5ad("adata_test.interpolation.larry.h5ad")

def _subset(adata_train, adata_test, t: int):

    train_subset_idx = adata_train.obs.loc[adata_train.obs['Time point'] == t].index
    test_subset_idx = adata_test.obs.loc[adata_test.obs['Time point'] == t].index
    subset_train_X_pca = adata_train[train_subset_idx].obsm['X_pca']
    subset_test_X_pca = adata_test[test_subset_idx].obsm['X_pca']
    if t in [2, 6]:
        return subset_train_X_pca
    else:
        return subset_test_X_pca

Subsets = {}
for t in [2, 4, 6]:
    Subsets[t] = _subset(adata_train, adata_test, t = t)

sinkhorn = sdq.core.lightning_models.base.SinkhornDivergence()

def compute_distance(X_pca_train, X_pca_test, N: int = 10, batch_size: int = 2048):
    dist = {}
    X_train = torch.Tensor(X_pca_train)
    X_test = torch.Tensor(X_pca_test)
    for i in range(N):
        x_train_idx = np.random.choice(range(len(X_train)), batch_size)
        x_test_idx = np.random.choice(range(len(X_test)), batch_size)
        X_train_ = X_train[x_train_idx].to("cuda:0")
        X_test_ = X_test[x_test_idx].to("cuda:0")
        dist[i] = sinkhorn(X_train_, X_test_).detach().cpu().numpy()
    return pd.Series(dist)

Distances = {}
for ti, xi in Subsets.items():
    Distances[ti] = {}
    for tj, xj in Subsets.items():
        Distances[ti][tj] = compute_distance(Subsets[ti], Subsets[tj], N = 25, batch_size = 2048)
    print(ti, tj)
    _df = pd.DataFrame(Distances[ti])
    Distances[ti] = pd.DataFrame({"mean": _df.mean(), "std": _df.std()})

2 6
4 6
6 6

Distances from d2

Distances[2]

	mean	std
2	69.984912	24.334102
4	110.321152	16.750583
6	183.232344	17.898138

Distances from d4

Distances[4]

	mean	std
2	108.676318	12.697362
4	38.467209	6.045755
6	71.86564	6.566473

Distances from d6

Distances[6]

	mean	std
2	183.00168	18.961327
4	73.881343	9.951367
6	37.374524	7.5477

time_cmap = sdq_an.pl.generate_temporal_cmap()

t_coarse = time_cmap.colors[2:-2][::18]
t_coarse

array([[0.979644, 0.854866, 0.142453],
       [0.801855, 0.284626, 0.465971],
       [0.227983, 0.016007, 0.604867]])

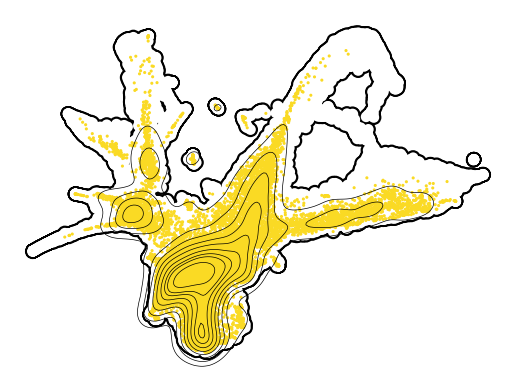

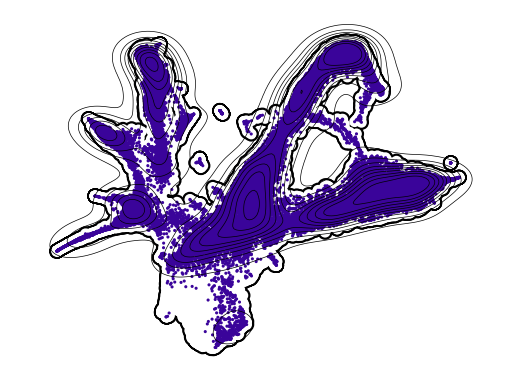

Plot d2, d6 (train)

for en, t in enumerate([2, 4, 6]):
    if t != 4:
        axes = cp.umap_manifold(adata_train)
        cp.umap(adata_train[adata_train.obs['Time point'] == t], ax = axes[0], s = 5, c = t_coarse[en])
        xu = adata_train[adata_train.obs['Time point'] == t].obsm['X_umap']
        sns.kdeplot(x = xu[:,0], y = xu[:,1], c = "k", ax=axes[0], zorder = 301, linewidths=0.5)
        plt.savefig(f"train.interpolation.timepoint_{t}.svg", dpi = 250)
        plt.savefig(f"train.interpolation.timepoint_{t}.png")
        plt.show()

/home/mvinyard/.anaconda3/envs/sdq/lib/python3.9/site-packages/cellplots/core/_umap.py:194: UserWarning: *c* argument looks like a single numeric RGB or RGBA sequence, which should be avoided as value-mapping will have precedence in case its length matches with *x* & *y*.  Please use the *color* keyword-argument or provide a 2D array with a single row if you intend to specify the same RGB or RGBA value for all points.
  ax.scatter(X_umap[:, 0], X_umap[:, 1], **KWARGS)
/home/mvinyard/.anaconda3/envs/sdq/lib/python3.9/site-packages/seaborn/distributions.py:1176: UserWarning: The following kwargs were not used by contour: 'c'
  cset = contour_func(

/home/mvinyard/.anaconda3/envs/sdq/lib/python3.9/site-packages/cellplots/core/_umap.py:194: UserWarning: *c* argument looks like a single numeric RGB or RGBA sequence, which should be avoided as value-mapping will have precedence in case its length matches with *x* & *y*.  Please use the *color* keyword-argument or provide a 2D array with a single row if you intend to specify the same RGB or RGBA value for all points.
  ax.scatter(X_umap[:, 0], X_umap[:, 1], **KWARGS)
/home/mvinyard/.anaconda3/envs/sdq/lib/python3.9/site-packages/seaborn/distributions.py:1176: UserWarning: The following kwargs were not used by contour: 'c'
  cset = contour_func(

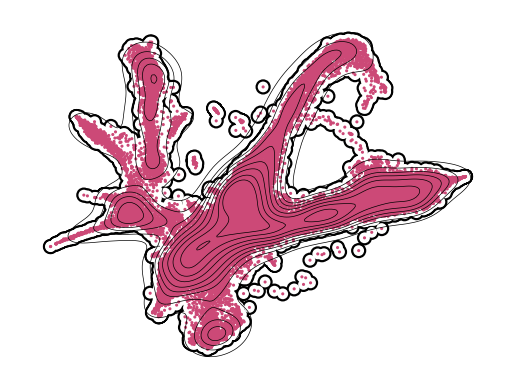

Plot d4 (test)

for en, t in enumerate([2, 4, 6]):
    if t == 4:
        axes = cp.umap_manifold(adata_test)
        cp.umap(adata_test[adata_test.obs['Time point'] == t], ax = axes[0], s = 5, c = t_coarse[en])
        xu = adata_test[adata_test.obs['Time point'] == t].obsm['X_umap']
        sns.kdeplot(x = xu[:,0], y = xu[:,1], c = "k", ax=axes[0], zorder = 301, linewidths=0.5)
        plt.savefig(f"test.interpolation.timepoint_{t}.svg", dpi = 250)
        plt.savefig(f"test.interpolation.timepoint_{t}.png")
        plt.show()

/home/mvinyard/.anaconda3/envs/sdq/lib/python3.9/site-packages/cellplots/core/_umap.py:194: UserWarning: *c* argument looks like a single numeric RGB or RGBA sequence, which should be avoided as value-mapping will have precedence in case its length matches with *x* & *y*.  Please use the *color* keyword-argument or provide a 2D array with a single row if you intend to specify the same RGB or RGBA value for all points.
  ax.scatter(X_umap[:, 0], X_umap[:, 1], **KWARGS)
/home/mvinyard/.anaconda3/envs/sdq/lib/python3.9/site-packages/seaborn/distributions.py:1176: UserWarning: The following kwargs were not used by contour: 'c'
  cset = contour_func(
