Figure S5 A, B

Import packages

%load_ext nb_black

import scdiffeq as sdq
import dev
import cellplots as cp
import matplotlib.pyplot as plt
import matplotlib.cm as cm
import pandas as pd
import numpy as np
import ABCParse
import os
import pathlib
import seaborn as sns
import larry
import scipy.stats
import glob
import matplotlib

Read data and load project

h5ad_path = (
    "/home/mvinyard/data/adata.reprocessed_19OCT2023.more_feature_inclusive.h5ad"
)
adata = sdq.io.read_h5ad(h5ad_path)

AnnData object with n_obs × n_vars = 130887 × 2492
    obs: 'Library', 'Cell barcode', 'Time point', 'Starting population', 'Cell type annotation', 'Well', 'SPRING-x', 'SPRING-y', 'clone_idx', 'fate_observed', 't0_fated', 'train'
    var: 'gene_ids', 'hv_gene', 'must_include', 'exclude', 'use_genes'
    uns: 'fate_counts', 'h5ad_path', 'time_occupance'
    obsm: 'X_clone', 'X_pca', 'X_umap', 'cell_fate_df'
    layers: 'X_scaled'

project = sdq.io.Project(path="./LightningSDE-FixedPotential-RegularizedVelocityRatio/")

Compute fate prediction accuracy for each version

RATIOS = {}
for version, path in project._VERSION_PATHS.items():
    try:
        v = getattr(project, version)
        acc = dev.fate_prediction_accuracy(v)
        target_ratio = v.hparams["velocity_ratio_params"]["target"]
        RATIOS[version] = target_ratio, v, acc
    except:
        pass

For each un-regularized training run, compute drift [f] and diffusion [g]

def f(df, key="training"):
    return df.filter(regex="velo_f").filter(regex=key).dropna().sum(1).mean()


def g(df, key="training"):
    return df.filter(regex="velo_g").filter(regex=key).dropna().sum(1).mean()


UnEnforcedResults = {}
for en, (version, results) in enumerate(RATIOS.items()):
    target_ratio, v, acc = results
    if v.hparams["velocity_ratio_params"]["enforce"] == 0:
        print(version)
        grouped = v.metrics_df.groupby("epoch")
        UnEnforcedResults[version] = {
            "f_training": grouped.apply(f, key="training"),
            "f_validation": grouped.apply(f, key="validation"),
            "g_training": grouped.apply(g, key="training"),
            "g_validation": grouped.apply(g, key="validation"),
        }

version_0
version_1
version_2
version_3
version_4

Compute the empirical unenforced ratio

unenforced_ratio = np.array(
    [
        v["f_validation"].iloc[-1] / v["g_validation"].iloc[-1]
        for i, (k, v) in enumerate(UnEnforcedResults.items())
    ]
)
unenforced_ratio.mean(), unenforced_ratio.std()

(0.3669882612570243, 0.13488926187436895)

rel = unenforced_ratio / (1 + unenforced_ratio)
print(rel.mean(), rel.std())
print(unenforced_ratio.mean() / (1 + unenforced_ratio.mean()))

0.26198354528285633 0.06584885182554004
0.2684648227480443

OrgResults = {}
for en, (version, results) in enumerate(RATIOS.items()):
    target_ratio, v, acc = results
    if v.hparams["velocity_ratio_params"]["enforce"] == 0:
        target_ratio = unenforced_ratio.mean()  # 0.3669882612570243
    if not target_ratio in OrgResults.keys():
        OrgResults[target_ratio] = []
    best = acc[acc.loc["unique_train.all_fates"].idxmax()]["unique_test.all_fates"]
    OrgResults[target_ratio].append(best)

sorted_results = {
    key: OrgResults[key]
    for key in sorted(np.array(list(OrgResults.keys())).astype(float))
}

for k, v in sorted_results.items():
    print("{:>9.4f} {:.3f}  {:.4f} | {}".format(k, np.mean(v), np.std(v), len(v)))

   0.0010 0.523  0.0164 | 5
   0.0100 0.499  0.0253 | 5
   0.3670 0.513  0.0271 | 5
   0.5000 0.520  0.0320 | 5
   1.0000 0.530  0.0160 | 5
   1.5000 0.506  0.0154 | 5
   2.2500 0.529  0.0386 | 5
   2.5000 0.548  0.0260 | 5
   3.0000 0.522  0.0381 | 5
   5.0000 0.530  0.0157 | 5
  10.0000 0.523  0.0347 | 5
  20.0000 0.391  0.0713 | 5
  30.0000 0.292  0.0467 | 4

Define helper functions for isolating best validation epochs

def _test_from_best_train(acc):
    best_train_epoch = acc.loc["unique_train.all_fates"].idxmax()
    best_train = acc[best_train_epoch]
    return best_train_epoch, best_train["unique_test.all_fates"]


def _get_best_F_hat_path(version, best_epoch):
    """use glob to filter and grab the right saved F_hat"""
    try:
        regex = f"LightningSDE-FixedPotential-RegularizedVelocityRatio/version_{version}/fate_prediction_metrics/{best_epoch}*/F_hat.processed.csv"
        return glob.glob(regex)[0]
    except:
        regex = f"LightningSDE-FixedPotential-RegularizedVelocityRatio/version_{version}/fate_prediction_metrics/on_train_end*/F_hat.processed.csv"
        print(regex)
        return glob.glob(regex)[0]


def _convert_best_epoch_name(row):
    if row["best_epoch"] == 2500:
        return "last"
    if row["best_epoch"] == 2499:
        return "on_train_end"
    return f"epoch_{row['best_epoch']}"


def get_best_results(RATIOS):
    BestResults = []
    for en, (version, results) in enumerate(RATIOS.items()):
        #         if not version in ["version_46", "version_71"]:

        target_ratio, v, acc = results
        #             if target_ratio == 30:
        #                 print(acc)
        #                 print()
        #         if not str(target_ratio) in OrgResults.keys():
        #             BestResults[] = []

        best_epoch, best_score = _test_from_best_train(acc)
        v_key = version.split("version_")[-1]
        BestResults.append(
            {
                "target_ratio": str(target_ratio),
                "best_epoch": best_epoch,
                "best_score": best_score,
                "version": v_key,
            }
        )

    return pd.DataFrame(BestResults)

best_results = get_best_results(RATIOS)
best_results

	target_ratio	best_epoch	best_score	version
0	2.0	1891	0.508731	0
1	2.0	2500	0.485448	1
2	5.0	2285	0.522701	10
3	0.01	1674	0.472643	11
4	1.0	1294	0.552969	12
...	...	...	...	...
59	2.25	1603	0.516880	62
60	2.25	2285	0.477299	63
61	5.0	1330	0.514552	7
62	5.0	1119	0.555297	8
63	1.0	1287	0.534342	9

64 rows × 4 columns

unreg = OrgResults[0.3669882612570243]
unreg

[0.5087310826542492,
 0.4854481955762514,
 0.4982537834691501,
 0.5646100116414435,
 0.509895227008149]

grouped_accuracy = {
    group: group_df["best_score"].values
    for group, group_df in best_results.groupby("target_ratio")
}
grouped_accuracy[0.3669882612570243] = unreg

sorted_keys = [
    0.001,
    0.01,
    0.3669882612570243,
    0.5,
    1.0,
    1.5,
    2.0,
    2.25,
    2.5,
    3.0,
    5.0,
    10.0,
    20.0,
    30.0,
]

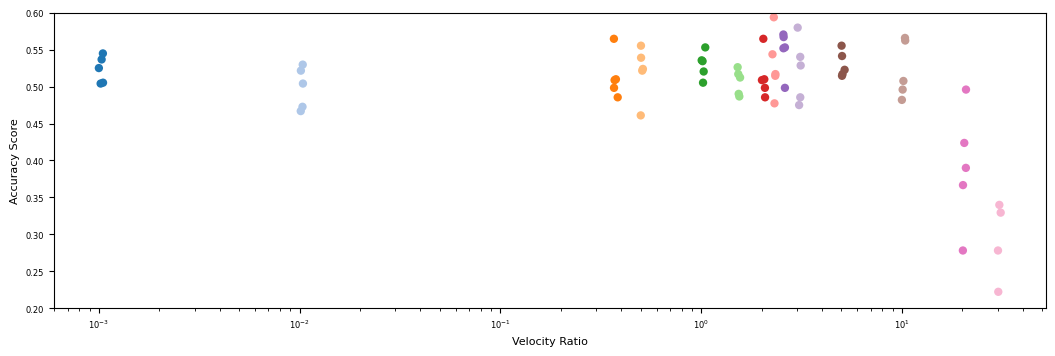

fig, axes = cp.plot(height=0.8, width=2)

for en, k in enumerate(sorted_keys):
    try:
        y = grouped_accuracy[str(k)]
    except:
        y = grouped_accuracy[k]
    x = np.full(len(y), fill_value=float(k))
    xr = np.random.random(len(x)) * (x / 20)
    x = x + xr
    axes[0].scatter(x, y, ec="None", c=cm.tab20.colors[en])
axes[0].set_xscale("log")
axes[0].set_ylim(0.2, 0.6)
axes[0].set_xlabel("Velocity Ratio")
axes[0].set_ylabel("Accuracy Score")
plt.savefig("fate_prediction.velocity_ratio.hp_optimization.svg")

for en, k in enumerate(sorted_keys):
    try:
        y = grouped_accuracy[str(k)]
    except:
        y = grouped_accuracy[k]
    print("{:<20}".format(k), "{:.3f}".format(np.mean(y)), " {:.4f}".format(np.std(y)))

0.001                0.523  0.0164
0.01                 0.499  0.0253
0.3669882612570243   0.513  0.0271
0.5                  0.520  0.0320
1.0                  0.530  0.0160
1.5                  0.506  0.0154
2.0                  0.513  0.0271
2.25                 0.529  0.0386
2.5                  0.548  0.0260
3.0                  0.522  0.0381
5.0                  0.530  0.0157
10.0                 0.523  0.0347
20.0                 0.391  0.0713
30.0                 0.292  0.0467
